Introduction

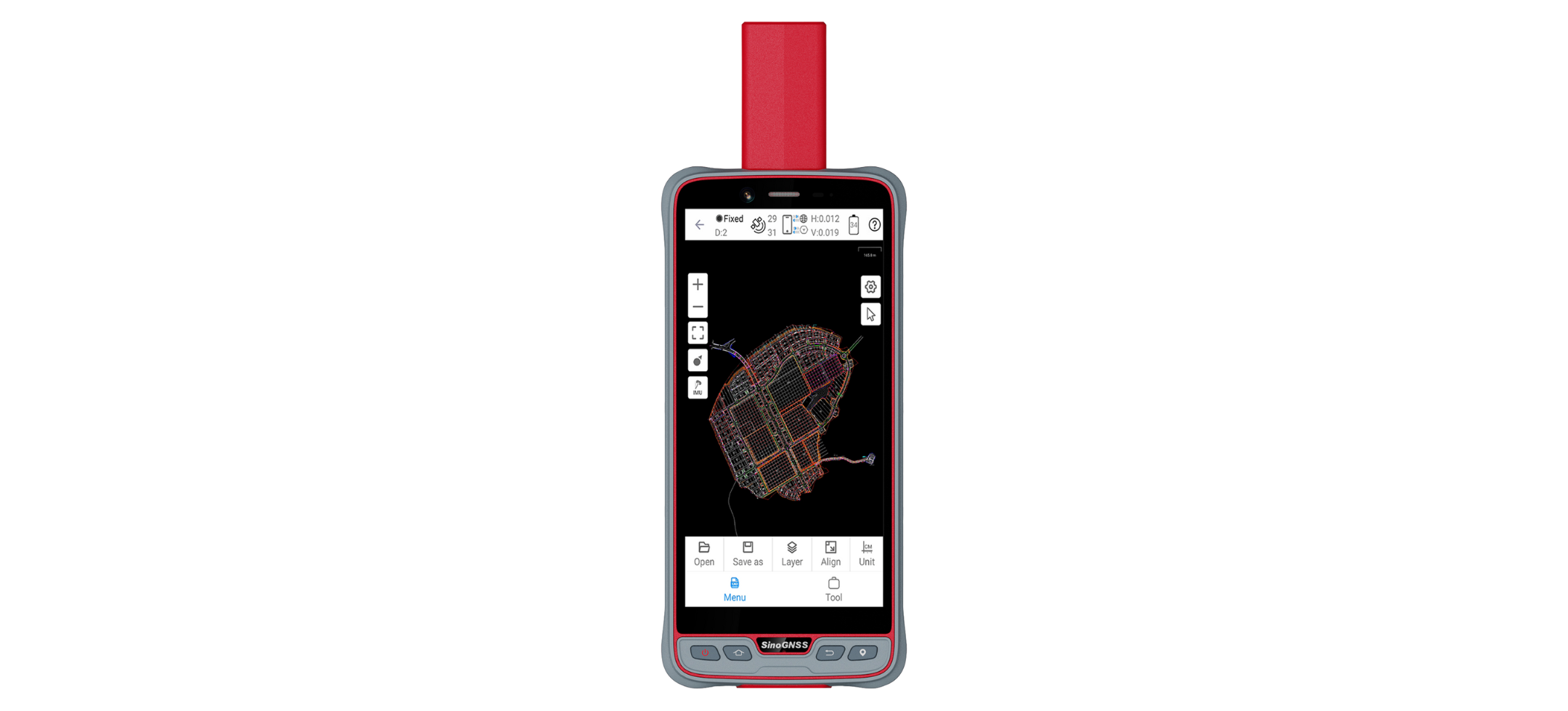

The P6H Handheld is an advanced, rugged device tailored for Geographic Information System (GIS). Equipped with SinoGNSS self-developed high precision K8 board and antenna, it tracks all running and planned constellations, including GPS, BDS, GLONASS, GALILEO, QZSS, IRNSS and SBAS. Its accuracy remains at centimeter (RTK) or decimeter (PPP) level. Its portability and durability make it reliable even in harsh conditions.


  • 6” Sunlight Readable Screen
  • Compatible with common GIS software
  • Android™ 11 with GMS certified
  • Integrated High Precision GNSS Module and Antenna
  • Integrated 4G LTE, Wi-Fi and Bluetooth® 5.0 BLE
  • IP67 Dustproof and Waterproof
01
Android 11
The P6H boasts an 8-core 2.0GHz processor paired with Android 11 OS, GMS-certified to guarantee smooth operation of Google's app ecosystem
02
IP67 Certified
The IP67 dust and water proof rating ensure the P6H work in harsh environments
03
Commonly used GIS software are supported
Aside from Survey Master's GIS capabilities, the P6H is compatible with commonly used Third-Party GIS Software, such as ArcGIS collector, Mapit GIS, and Qfield
Product Parameter
Performance
Physical
Communications
Sensors
Performance
Channels1590
Satellite TrackingGPS: L1C/A, L2P, L2C, L5, L1C
BeiDou: B1l, B2l, B3l, B1C, B2a, B2b
GLONASS: L1, L2, L3
Galileo: E1, E5b, E5a, E6c, E5 AItBOC
QZSS: L1C, L2, L5, L1C/A
IRNSS: L5
SBAS: L1C/A
Single Baseline RTK8 mm +1 ppm Horizontal
15 mm+1 ppm Vertical
SBAS0.5m Horizontal
0.8m Vertical
Standalone1.5m 3D RMS
Post Processing2.5 mm +1 ppm Horizontal
5 mm+1ppm Vertical
PPP (B2b & HAS)20cm Horizontal
CPU8-core processor 2.0GHz
Operating SystemAndroid 11
ROM64GB (128GB optional)
RAM4GB (6GB optional)
Extension1 Micro SD card slot
up to 128G
Rear Camera13M
Front Camera5M
Battery6600mAh built-in battery
Physical
Size165.5*81.6*29.1mm
LCD6"HD screen
               2160*1080 resolution
Touch ScreenCapacitive multi-touch, 5 points
Flash LightY
MicrophoneY
SpeakerFront dual stereo 90dB±3dB (at 10cm)
Weight310g
ChargingQuick Charge
Keypad4*Doer 1*HOME
1*Return, 1*Position
Work Temperature-20°C~55°C
Storage Temperature-30°C~70°C
Waterproof & DustproofIP67
Drop TestSurvive from a 1.2m drop
Electrostatic Protection±15kv air discharge
±8kv contact discharge
Humidity95% non-condensing
Communications
WIFIIEEE 802.11 a/b/g/n/ac 2.4GHz/5GHz
SIM Card2 Nano-SIM Card slots
Dual SIM & Dual Standby
NetworkFDD-LTE B1/B3/B5/B7/B8 TDD-4TE 838/B39/B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA 1x/CDMA2000 BCO/BC1
BluetoothBT 5.0 BLE
USBType C, support OTG
External InterfaceUSB, OTG
Sensors
G SensorY
MagnetometerY
Light Sensing SensorsY
Download
  • SinoGNSS P6H Handheld.pdf(8.66MB)
    2024-05-30
    DOWNLOAD
