Introduction

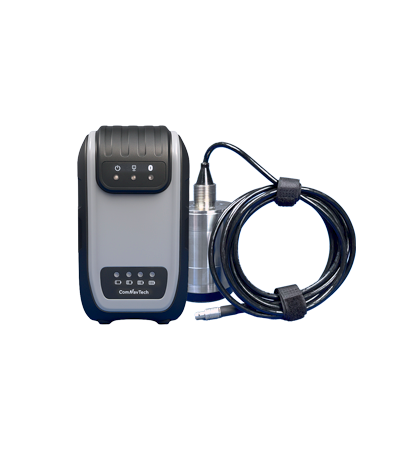

The HYD10 is a new-generation portable echo sounder developed by ComNav. Compact in design, it enables automatic depth measurement. With advanced algorithms and high signal-to-noise circuit design, it supports RTK data input and runs on a Linux-based industrial platform with a rugged and stable structure to ensure reliable performance.


  • High Accuracy
  • Lightweight and Portable
  • Wireless Convenience
  • Integrated Functions
  • Durable and Reliable Protection
  • User-friendly Software
01
High Accuracy
Equipped with next-generation ultrasonic depth measurement technology, the system achieves depth errors within 10 mm with significantly enhanced resolution. lt precisely identifies shallow variations and underwater obstacles, ensuring reliable data.
02
Integrated Functions
The software “Survey Master” integrates both RTK surveying and hydrographic modules. Underwater depth measurement and RTK ground point surveying are seamlessly combined, eliminating the need to switch systems and enabling efficient“depth + positioning" operations.
03
Wireless Convenience
Stable Bluetooth connects the main unit with mobile devices without cables, while WiFi enables fast RTK integration. This replaces the traditional “main unit-transducer-RTK” wired setup, avoiding cable breakage or poor connections and making fieldwork easier.
Product Parameter
Physical
Performance
Communication
Physical
Dimensions

Main Unit: 137x72x50 mm,

Transducer: D70 mm x H105 mm

Device Weight1.2kg
Storage Temperature-40°C to +70°C
Operating Temperature-20'C to +60°C
Buttons / KeypadPower Button
Material Dustproof & Waterproof

Probe: 316 Stainless Steel

IP67

Power Consumption5W
Lithium Battery

3400mAh, operating time 8 hours

External Power SupplyDC9~28V
Performance
Operating Frequency200kHz
Maximum Sampling Rate

30Hz

Depth Range0.3-200m
Depth Accuracy±1cm + 0.1% h (h: Water Depth)
Resolution1cm
Sound Velocity Adjustment Range1300m/s-1700m/s
Beam Angle6°
Maximum Transmit Power300W
Communication
Data Type

NMEA: SDPT/SDDBT

Operating System

Linux

Interface / PortRS232 / Transducer Interface
BluetoothBT5.0, backward compatible with BT2.x
