Introduction

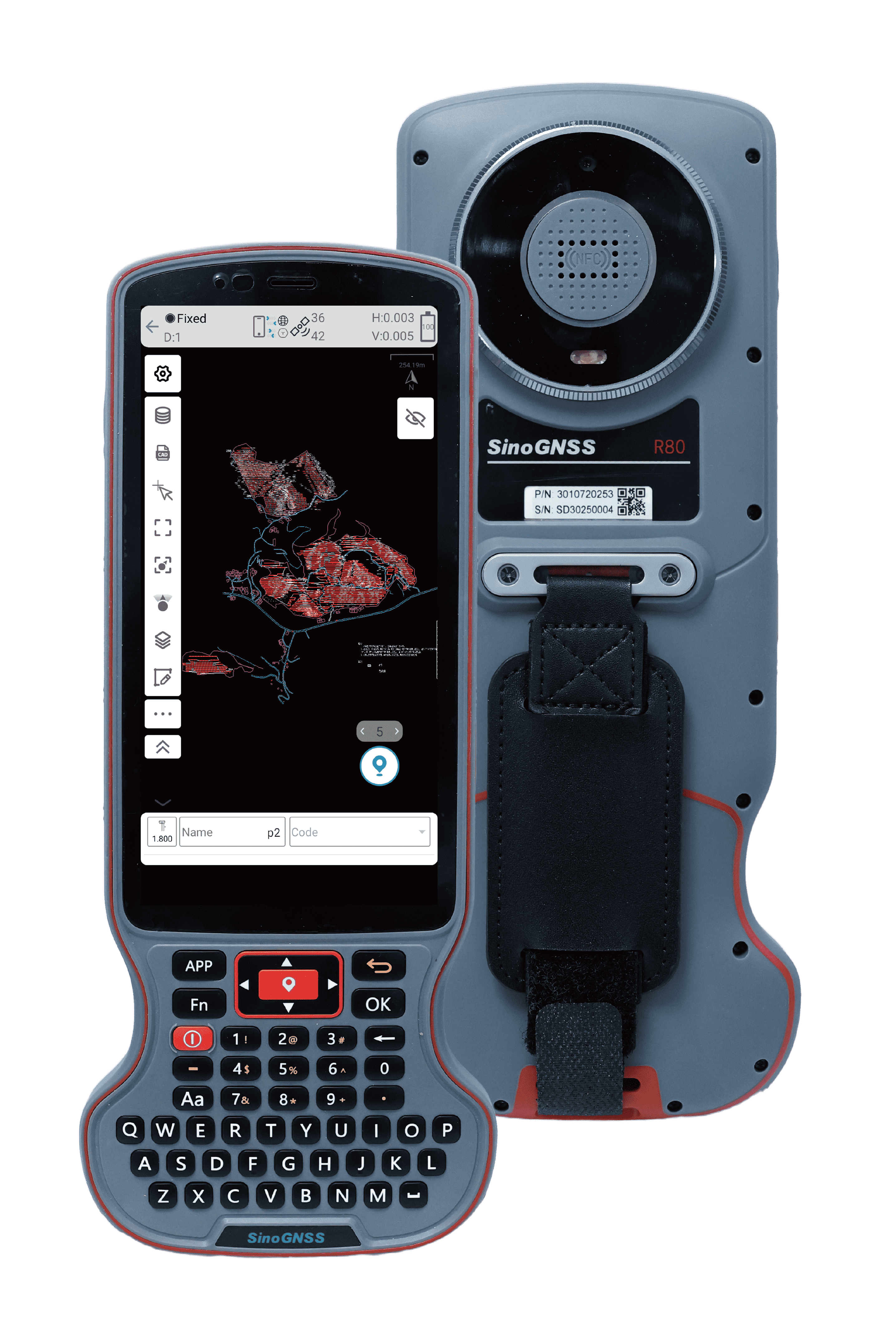

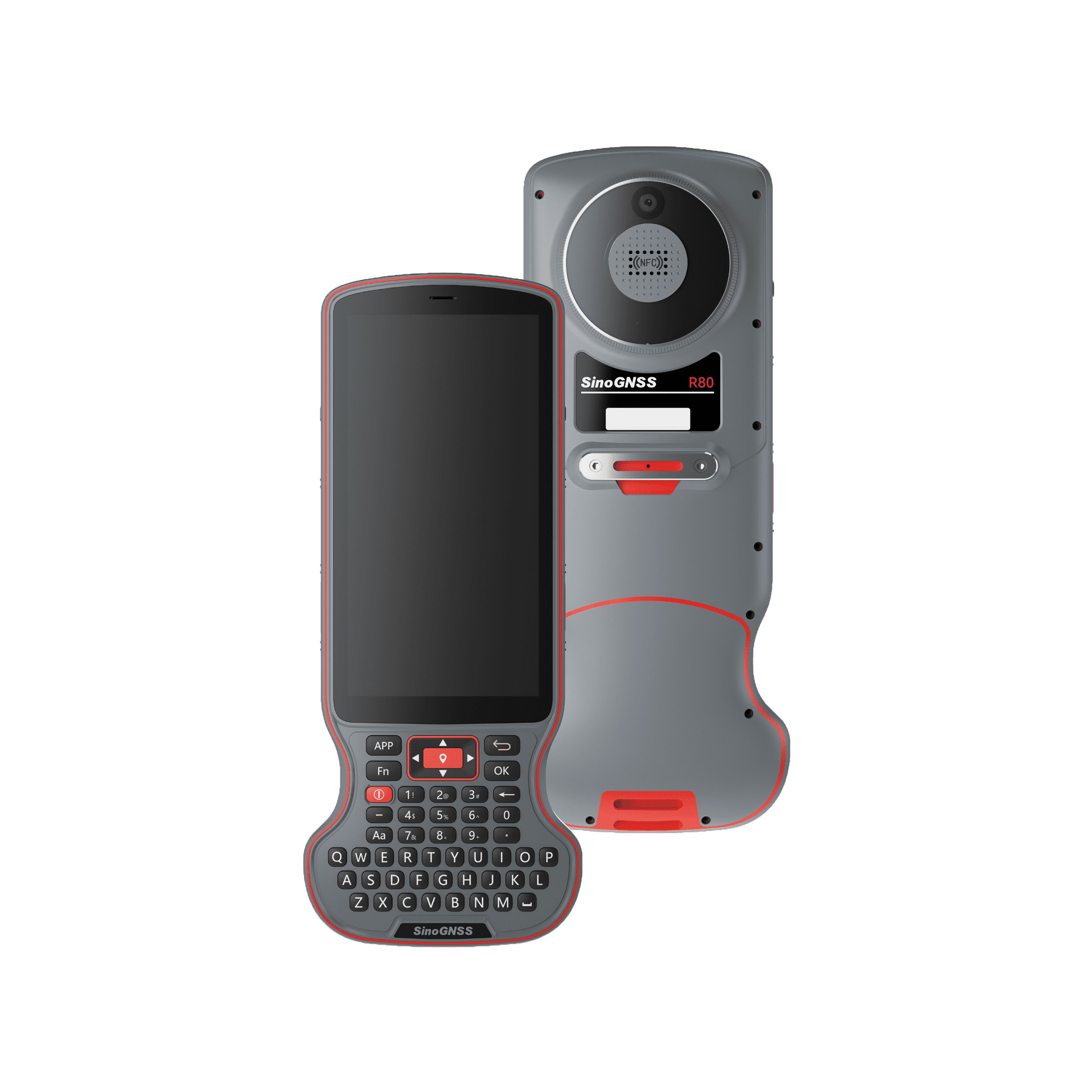

R80 is a high-performance GNSS data controller with smartphone functionality, built on the Android 12.0 operating system. Powered by a robust MediaTek octa-core processor, it delivers exceptional speed and efficiency. R80 is a rugged and ergonomic controller that delivers the professionalism and flexibility in your field surveying work.


  • Android 12.0 Operating System
  • 6" Touch Display with 720*1080 Resolution, 500 nits Brightness
  • 8-Core Processor 4+64 GB Memory , 6GB+128GB/8GB+128GB Optional
  • White Backlight Keyboard with 51 buttons, with 2 side-mounted data collection buttons
  • 9000mAh Li-Polymer Battery, Support QC & PD Fast Charging
  • Support 4G, Ultra-Distance Bluetooth®, Wi-Fi, NFC
  • IP67 Waterproof and Dustproof
01
Android 12
The R80 is a high-performance GNSS data controller with smartphone functionality, built on the Android 12.0 operating system. Powered by a robust MediaTek octa-core processor, it delivers exceptional speed and efficiency. With 4GB RAM and 64GB of storage, the device ensures seamless multitasking and rapid access to large files, including instant loading of CAD drawings.
02
Brilliant User Experience
Featuring a vibrant 6-inch 1080P display with 500 nits brightness, the R80 ensures excellent visibility even under direct sunlight. The touchscreen supports glove operation and hard-tip stylus input,enhancing usability in various field conditions. For efficient data entry, the device includes a full-size, ergonomic keyboard with white backlighting, designed for comfort and precision. Additionally, dedicated data collection buttons on both sides further streamline operation, enabling quick and intuitive use.
03
Industry-Landing Durability
Engineered for durability, the R80 boasts an lP67 certification for superiorwaterproof and dustproof performance. lts rugged construction ensuresreliable operation even after 1.5-meter drops onto concrete, making it idealfor demanding field environments. With the high-capacity 9000mAh battery,it provides 30+ hours of continuous operation. Supporting both QC (QuickCharge) and PD (Power Delivery) fast charging technologies, it can get fulcharged in just 5 hours.
Product Parameter
Physical
Communications
Sensors
Physical
Size242 mm × 87.6 mm × 24 mm
Working temperature-20 °C to +65 °C
Storage temperature-40 °C to +70 °C (excluding battery)
Weight488 g with battery
dustproof and waterproofIP67 Standard
ShockSurvive a 1.5 m drop onto concrete
ProcessorMedia Tek 8-Core Processor
Keypad

White backlight keypad including Full QWERTY

10-key number pad

directional buttons

8 programmable buttons

2 data collection buttons on the sides

Li-battery capacity9000 mAh, working 30h+
ChargingSupport QC and PD fast - charging protocols
Camera13 megapixel camera
ROM64GB(128GB is optional)
RAM

4GB(6GB/8GB is optional),

separated storage

Card Slots2 card slot, support Dual SIM Dual Standby(DSDS) or one SIM card and one TF card (up to 512GB)
LEDThree - color charging indicator light: Red for charging, green for fully charged. (Supports charging indication without power - on)
Display

6’’ capacitive touch screen

720×1080 resolution

500 nits brightness




Communications
WIFI802.11a/b/g/n/ac, 2.4G + 5G dual band, support fast roaming
BluetoothBT5.1 with downward compatibility
Type CSupport OTG, meet ESD (Contact ±8KV, Air ±15KV standard design), EOS (VBUS ±500V, VBAT ±300V), OVP (10.5V, DC withstand voltage of surge tube over 24V)
NFC13.56MHz, readable range 20mm - 50mm, protocols ISO14443A/14443B/15693
4G

GSM: B2/B3/B5/B8

WCDMA: B1/B2/B4/B5/B8

TDD-LTE: B34/B38/B39/B40/B41

FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/ B17/B19/B20/B25/B28A/B28B

QC fast charger1
USB cable1
Hand strap1
Battery1
Quick start guide sheet1


Sensors
Acceleration sensor (Support 3 - axis)Y
Gyroscope sensorY
Light-SensorY
NFCY

Electronic Compass, GPS/BeiDou/Galileo/GLONASS/QZSS/AGPS

 (Target SNR≥39dB at Signal level - 130dBm)

Y


Download
  • SinoGNSS R80 Data Collector_EN.pdf(4.14MB)
    2025-08-14
    DOWNLOAD
