From a Surveyor to National CORS Owner – A successful case from Uganda of how to build your CORS
– EagleCORS team
1 What is CORS
2 Overview and Background
The reformation of the land sector and the development of the Land Information System increased the need to build a modern geodetic network for improved reliability and accuracy of land registration information and services. In the early 2016, no well-established and nationwide CORS serving for surveyors was completed in Uganda. David Mulindwa, a sophisticated surveyor and a loyal user of ComNav Technology products, conceived a blueprint to build a CORS that covers the entire Uganda.
“We decided to start our own CORS service because of the high demand for, quality client-centric CORS service. Often times the CORS concept from previous single CORS services wasn’t giving clients the results expected,” says David Mulindwa, CEO of EagleCORS Uganda, “A strategic plan to set up a fully functioning CORS service was laid out and our partners offered support in terms of technical knowledge, and equipment which we used to start this international level standard service.”
With strong execution and technical support, a new and well-served CORS service in Uganda, the EDAS - EagleCORS Data Access Service kick started in the late 2017. It was soon announced in full operation throughout the major cities and towns within the country at end of 2018. David Mulindwa, the CEO of EagleCORS, changed from a registered land surveyor to the owner of this privately-run national CORS network.
3 Building a CORS
18 AT500 Chock Ring Antennas
Other hardware, including routers, lightning rods, UPS, solar panels, etc.
ComNav Technology CDC+, for single base
Shortage of Internet & power source: Difficult to select the appropriate internet service provider and stable and reliable power source.
Intense ionospheric scintillation: The location of Uganda is close to the equator, suffering from more intense ionospheric scintillation and weaker signal reception.
Regarding the construction of entire EDAS, the first reference station is always the most exemplary and a milestone. The EagleCORS team built the first station in Kampala in late 2017. The whole work flow is illustrated in Fig. 1. Each step contributes a lot to the CORS accuracy.

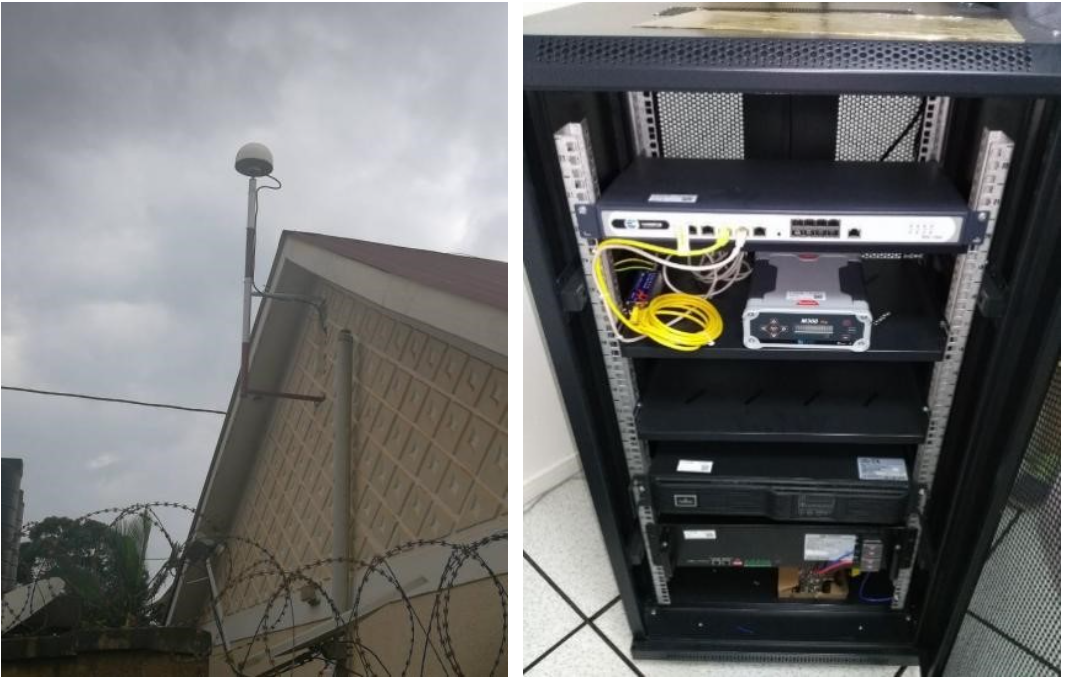

“Our first station is located in Kampala, which is the major business/economic center and the Capital City of Uganda. With such important status, Kampala was critical to the start of our operations. It has always been our most treasured station since it has always played an integral role from the beginning,” explains David.
In addition, routers, lightning protection device, battery protection device, enclosure AC cooling fan and other accessories also need to be prepared.
➬ Coverage: The station should deliver data streams to a wide area covering Kampala and the neighboring districts within 70km radius.
➬ Environment: The station site should be open to the sky, far away from signal interference areas and ground objects which will cause multipath.
➬ Signal quality: A 24-hour signal observation should be conducted on the station site and analyzed via post-processing software (like Sinognss Compass Solution software) to check whether the satellite signal quality is good enough for a reference station.
“For CDC.NET I can say we contributed to its current state. At the start it was not stable but as of today, we are one of the beneficiaries of this very good software. Very stable even on our Cloud server,” remarks David.

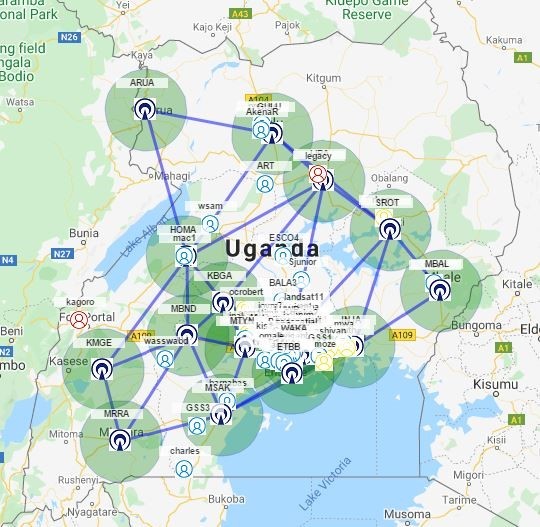

Up to now, the EDAS has built 17 reference stations in Uganda and 2 stations in east Africa (manifested in Fig. 6), covering approximately 80% of Uganda and all of these are active (19), to provide users with accurate RTCM correction data. With the rapid expansion in territory, another issue concerning baseline distance between stations arose. Thus, a reasonable planning is important to obtain better data quality against ionospheric scintillation.
“We have so far covered approximately 80% of the country although we have plans to completely cover the entire country by 2022,” plans David, “Our plan is to have 50 active station in Uganda lone and another expansion program to cover the region of East Africa as such we hope to play a leading role in contributing towards realization of Africa Geodetic Reference frame-AFREF.”
4 Operating a CORS
So far, EDAS has operated on track with high-automated software CDC.NET and can be effectively managed. EDAS has average 50 active users every single moment and approximately 200 - 300 users every day. Every user can be monitored and managed in real time as displayed in Fig. 7.
“EDAS-EagleCORS Data access service was first started as pilot program but then we made great improvements, innovations coupled with targeted investments in terms of more stations, online payment systems, among others at which point we made it commercial.” explains David.
The EagleCORS team started to build EDAS in late 2017. It only took them one year to build EDAS to a large scale and another year to make ends meet, which means they have started making profit at the end of 2019.
5 Conclusion
It is well informed from the successful case from Uganda that a well-developed CORS network is constituted of professional geodetic knowledge, high-performance GNSS equipment, reasonable site planning, efficient management systems and insightful eyes, each element is indispensable.
With more and more applications of RTK survey, CORS network is becoming a common trend because it can largely save surveyors’ time and money, which is firmly proved by the successful case of EDAS. Over a long period of time, CORS build is necessary and promising.

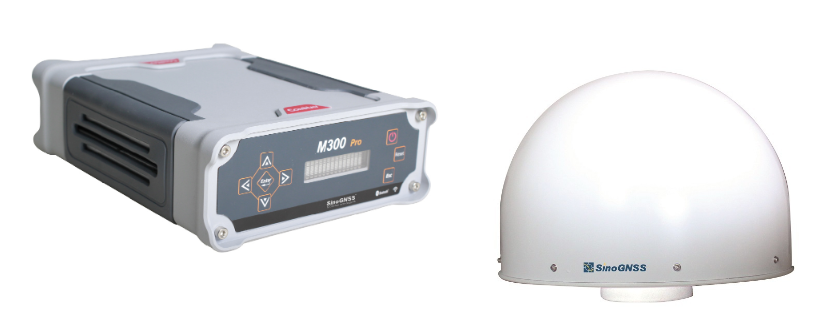

Superior-powered GNSS equipment contributes to this success project largely. M300 Pro GNSS receiver, combining high precision GNSS module, intuitive web configuration interface, abundant data transmission and flexible connection, provides CORS administrators with highly stable and reliable user experience.
David remarks, “M300pro is one of the best Geodetic receivers we have used. Its dependable and costs reasonable price compared to other brands but most important for any CORS operator is that this receiver is very stable and comes with in built power that ensures round the clock logs in even in periods of unstable power supply.”
David Mulindwa CEO of EagleCORS Uganda www.eaglecors.com
