Introduction

Designed for static pressure pile project, SinoGNSS high-precision piling solution is an easy-to-use piling system that able to deliver centimeter-level piling positioning accuracy for multiple construction applications. It largely boosts field produc-tivity and reduces rework compared to traditional leveling method.

Features

HIGHLY INTEGRATION DESIGN

10.1’’ high-resolution tablet with integrated high-precision GNSS engine allows you easier installation and operation
FLEXIBLE RTK CORRECTION DATA RESOURCE

Acquire correction via internal UHF by setting up SinoGNSS T300 as the base. It also allows you to connect local CORS to get correction
RELIABLE EVERYWHERE ANYTIME

Its integrated GNSS engine tracking full constellations that enables the system to work even in significant weather challenges, helping you reduce construction schedule
2CM REAL-TIME PILING ACCURACY

SinoGNSS high-accuracy piling system ensures proven 2 cm real-time piling accuracy, while reducing labor cost for your construction
CAD BASE MAP SUPPORT

Directly import your CAD base map to achieve efficient points piling, and manage your project in CAD view
USER FRIENDLY INTERFACE

Pressure sensitive touchscreen with graphic icon design provides you an intuitive user interface, ensuring an efficient piling workflow even for untrained operators

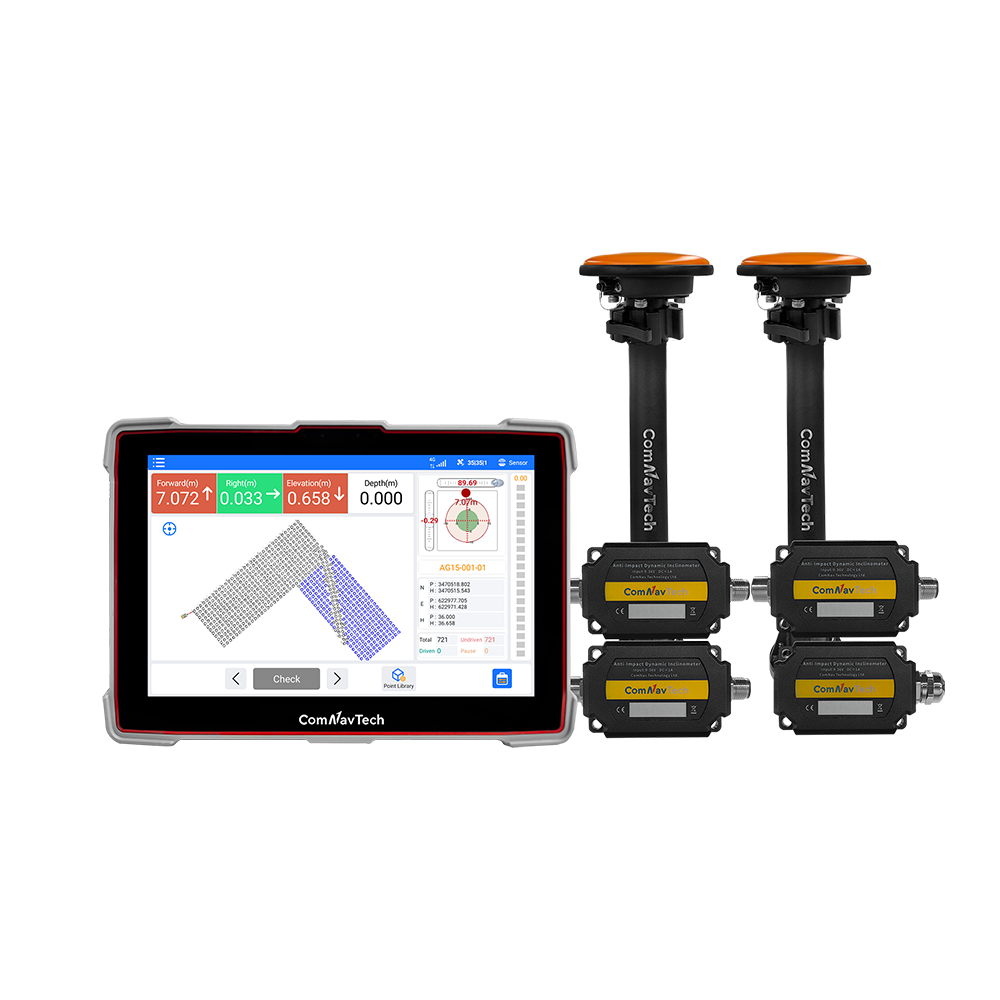

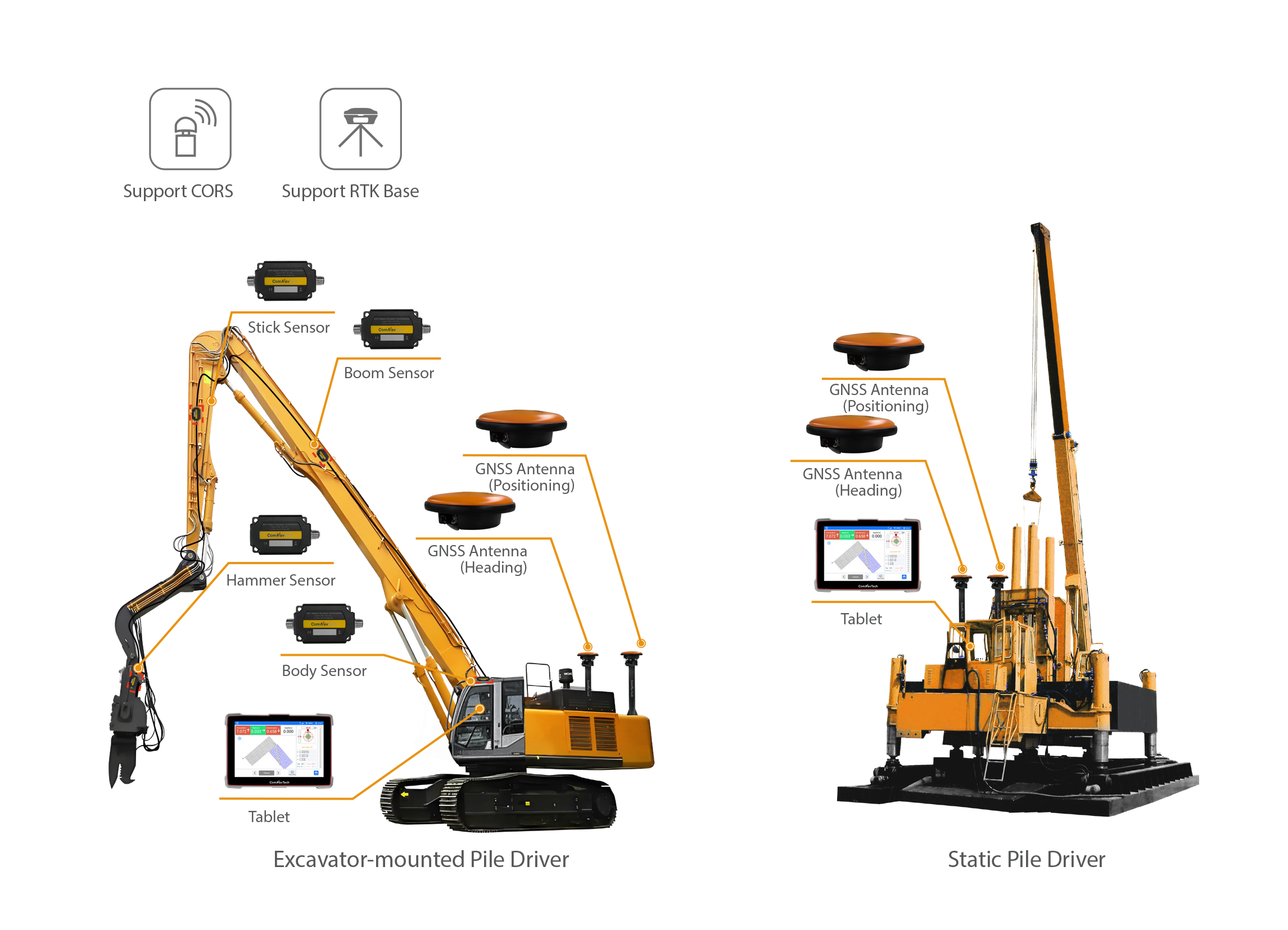

System Composition

Advantage

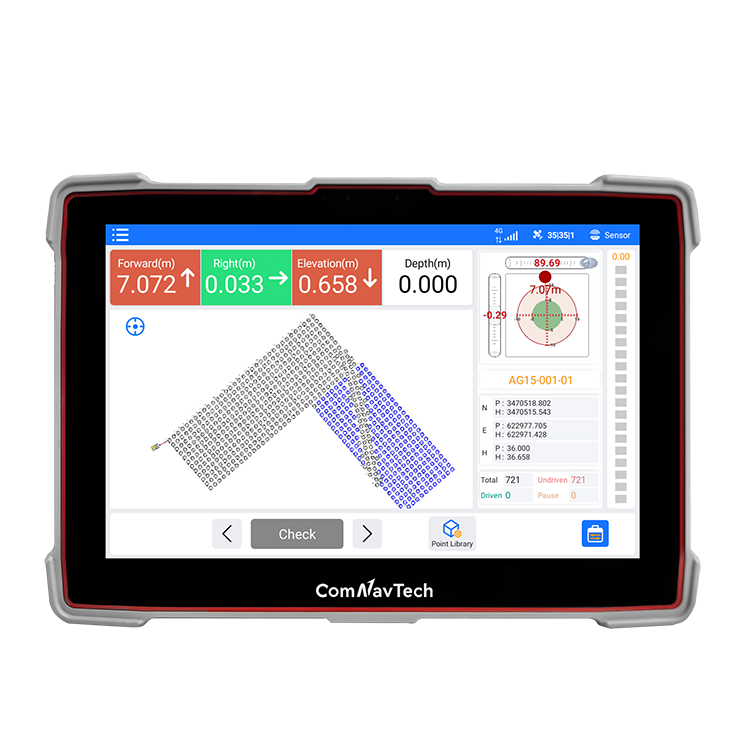

GNSS Tablet

The industrial-grade GNSS tablet features a fully rugged design and IP66 protection, making it suitable for various harsh working environments.

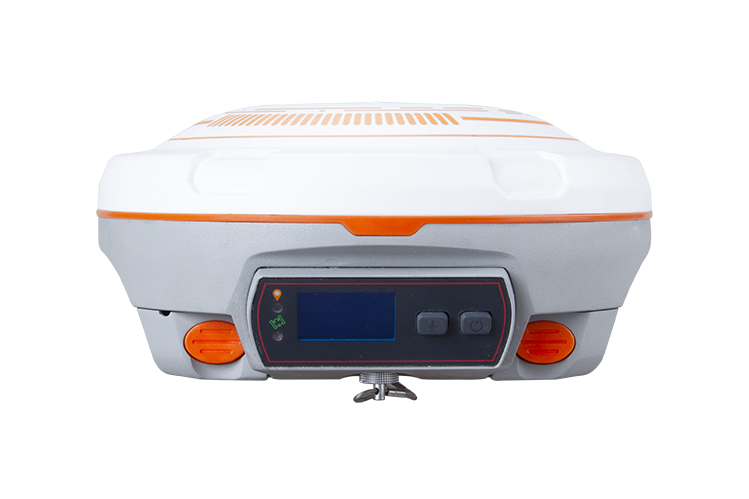

GNSS Receiver

With SinoGNSS QUANTUMTM Technology and internal UHF design, the T300 GNSS receiver is one of the most reliable choices set as the base, providing stable correction data to your piling system.
Antenna

The AT360 antenna is surper performance GNSS Antenna tracking GPS L1/L2/L5, GLONASS L1/L2, BDS B1/B2/B3, Galileo E1/E5a/E5b, SBAS and L-Band. The rugged magnetic mount helps you easily fix antennas on piling machines.
FIELD SOFTWARE

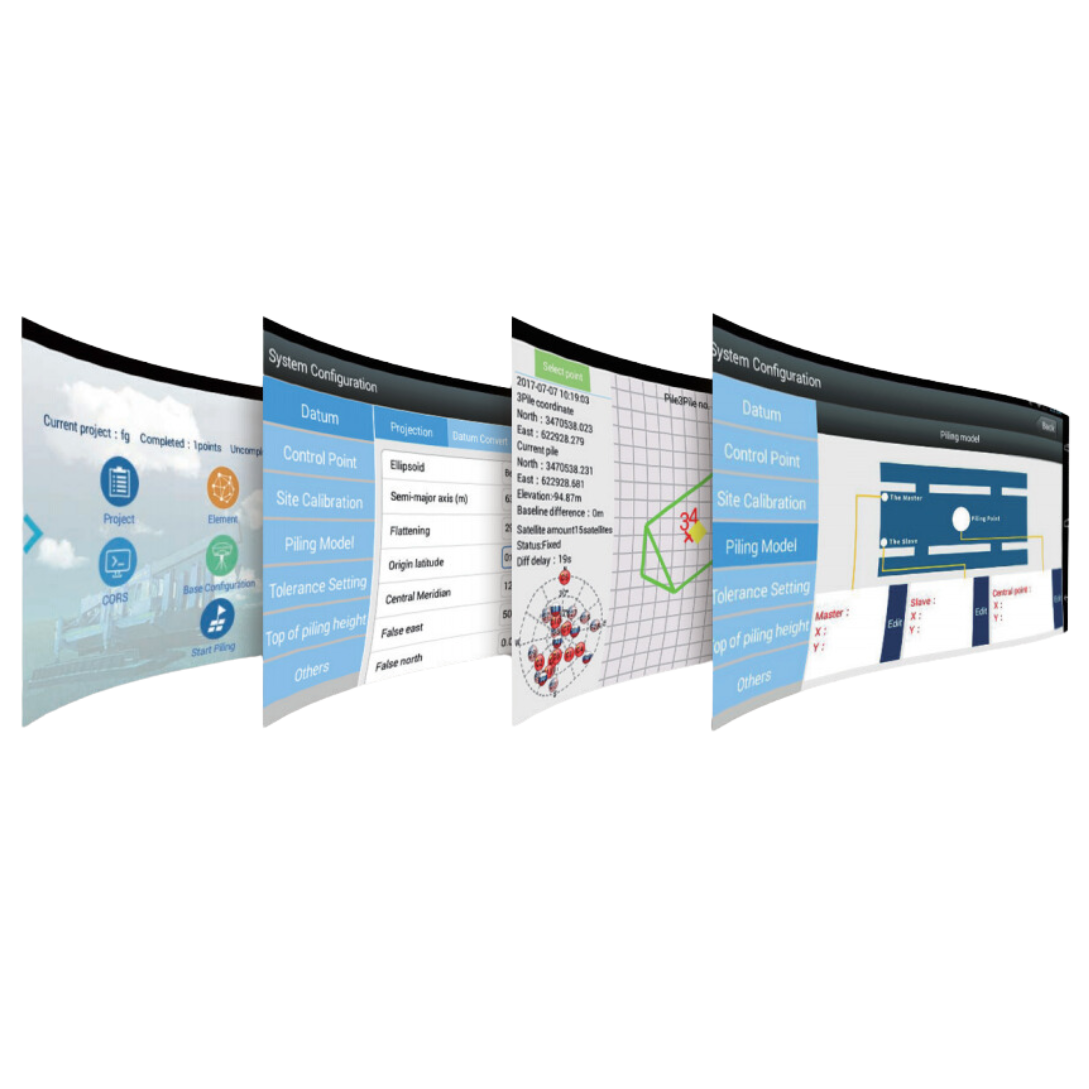

Pilemaster Software features an intuitive piling interface with graphic icon design, clear element management, support for importing up to 10,000 points, and compatibility with Excel, TXT, and CAD files.
